3 pumps

Problem posed

See on a forum:

We have:
- 3 pumps
- 1 push button called "start"
- 1 on/off button
When you press the button called start the pumps activate one after the other for a while but when you press more 5 seconds on start, the 3 pumps run together for a while.

One solution

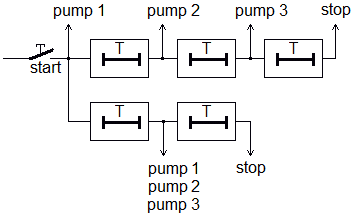

Overall we can solve the problem with 5 timers:

It lacks details on this scheme, but overall support on the start button sets the pump 1. At the end of the first delay, it is the pump 2 which sets out (we stop pump 1), and at the end we make a stop of the pump 3.

At the same time, we trigger a second 5s timer. If it arrives at the end of its time count, it activates the three pumps. Not represented, he must also deactivate the three timers of the upper line. A last timer stops the 3 pumps.

Complete program recommended

This program is completely under interruption, and releases loop which can be used to do something else.

/// We have:
// - 3 pumps
// - 1 push button called "start"
// - 1 on/off button
// When you press the button called "start" the pumps activate one after the
// other for a while but when you press more 5 seconds on "start", the 3
// pumps run together for a while.


//  start─┬─┤ Pump1 ├──┤ Pump2 ├──┤ Pump3 │
//         │
//         └─┤ FiveSeconds ├──┤ 3Pumps │


/////////////////////////// Library used /////////////////////////
#include <MTobjects.h> // V1.0.6 See http://arduino.dansetrad.fr/en/MTobjects


/////////////////////////// Program constants /////////////////////////
const unsigned long TIME_PUMP_1 = 5ul*60*1000 milli_seconds; // The pump 1 will run for 5 minutes alone
const unsigned long TIME_PUMP_2 = 5ul*60*1000 milli_seconds; // The pump 2 will run for 5 minutes alone
const unsigned long TIME_PUMP_3 = 5ul*60*1000 milli_seconds; // The pump 3 will run for 5 minutes alone
const unsigned long TIME_3_PUMPS = 10ul*60*1000 milli_seconds; // The three pumps will run for 10 minutes alone
const unsigned long TIME_FOR_3_PUMPS = 5000 milli_seconds; // You have to press 5s to operate the three pumps


/////////////////////////// Pin used ///////////////////////////////
const uint8_t PIN_START_BUTTON = A0; // Button wired between A0 and GND
const uint8_t PIN_ON_OFF_BUTTON = A1; // Button wired between A1 and GND
const uint8_t PIN_PUMP_1 = 2; // A HIGH on pin 2 sets out pump N°1
const uint8_t PIN_PUMP_2 = 3; // A HIGH on pin 3 sets out pump N°2
const uint8_t PIN_PUMP_3 = 4; // A HIGH on pin 4 sets out pump N°3
const uint8_t PIN_ON = 5; // Informed if we are "under tension"


/////////////////////////// Allow the pump 3 to turn some time
void stopPump3(void)
{
   digitalWrite(PIN_PUMP_3, LOW); // Stop the pump 3
}
MTclock TimerPump3(TIME_PUMP_3, stopPump3, 1 action_and_stop, MT_OFF);


/////////////////////////// Allow the pump 2 to turn some time
void stopPump2(void)
{
  digitalWrite(PIN_PUMP_3, HIGH); // Start the pump 3
  digitalWrite(PIN_PUMP_2, LOW); // Stop the pump 2
  TimerPump3.start(); // Start the next timer
}
MTclock TimerPump2(TIME_PUMP_2, stopPump2, 1 action_and_stop, MT_OFF);


/////////////////////////// Allow the pump 1 to turn some time
void stopPump1(void)
{
  digitalWrite(PIN_PUMP_2, HIGH); // Start the pump  2
  digitalWrite(PIN_PUMP_1, LOW); // Stop the pump 1
  TimerPump2.start(); // Start the next timer
}
MTclock TimerPump1(TIME_PUMP_1, stopPump1, 1 action_and_stop, MT_OFF);


/////////////////////////// Allow the three pumps to turn some time
void stop3Pumps(void)
{
  digitalWrite(PIN_PUMP_1, LOW); // Stop the pumps
  digitalWrite(PIN_PUMP_2, LOW);
  digitalWrite(PIN_PUMP_3, LOW);
}
MTclock Timer3Pumps(TIME_3_PUMPS, stop3Pumps, 1 action_and_stop, MT_OFF);


/////////////////////////// Long press
void threePumps(void)
{
  digitalWrite(PIN_PUMP_1, HIGH); // Start the 3 pumps
  digitalWrite(PIN_PUMP_2, HIGH);
  digitalWrite(PIN_PUMP_3, HIGH);
  TimerPump1.stop(); // Stop the cycle timers "a pump at a time"
  TimerPump2.stop();
  TimerPump3.stop();
  Timer3Pumps.start(); // Start the next timer
}
MTclock TimerFiveSeconds(TIME_FOR_3_PUMPS, threePumps, 1 action_and_stop, MT_OFF);


/////////////////////////// On/Off button /////////////////////////////
void start(void)
{
  digitalWrite(PIN_ON, HIGH); // Light the on/off light
}
void completStop(void)
{
  TimerPump1.stop(); // Stop all timers
  TimerPump2.stop();
  TimerPump3.stop();
  Timer3Pumps.stop();
  digitalWrite(PIN_PUMP_1, LOW); // Stop the pumps
  digitalWrite(PIN_PUMP_2, LOW);
  digitalWrite(PIN_PUMP_3, LOW);
  digitalWrite(PIN_ON, LOW); // Switch off the on/off light
}
MTcheckButton OnOffButton(PIN_ON_OFF_BUTTON, start, completStop);


/////////////////////////// Start button ///////////////////////////////////
void shortStart(void)
{
  if (OnOffButton.getSelect()) // If we are running
  {
    TimerPump1.start(); // Start the cycle
    TimerPump2.stop(); // Stop the other timers
    TimerPump3.stop();
    Timer3Pumps.stop();
    TimerFiveSeconds.start(); // to see a long press
    digitalWrite(PIN_PUMP_2, LOW); // Stop the pumps 2 and 3
    digitalWrite(PIN_PUMP_3, LOW);
    digitalWrite(PIN_PUMP_1, HIGH); // Start the first pump...
   }
}
void relaxing(void)
{
  TimerFiveSeconds.stop(); // Not a long press
}
MTbutton StartButton(PIN_START_BUTTON, shortStart, relaxing);


/////////////////////////// Setup and loop ///////////////////////////////////
void setup()
{
  pinMode(PIN_PUMP_1, OUTPUT); // pumps in OUTPUT mode
  pinMode(PIN_PUMP_2, OUTPUT);
  pinMode(PIN_PUMP_3, OUTPUT);
  pinMode(PIN_ON, OUTPUT); // Control led
}

void loop(){} // To put another independent program there
